Get Cub Cadet Voltage Regulator Location With Its Relevant Series!

by Jack Grover
Reading time: 7 min Prefer to listen?

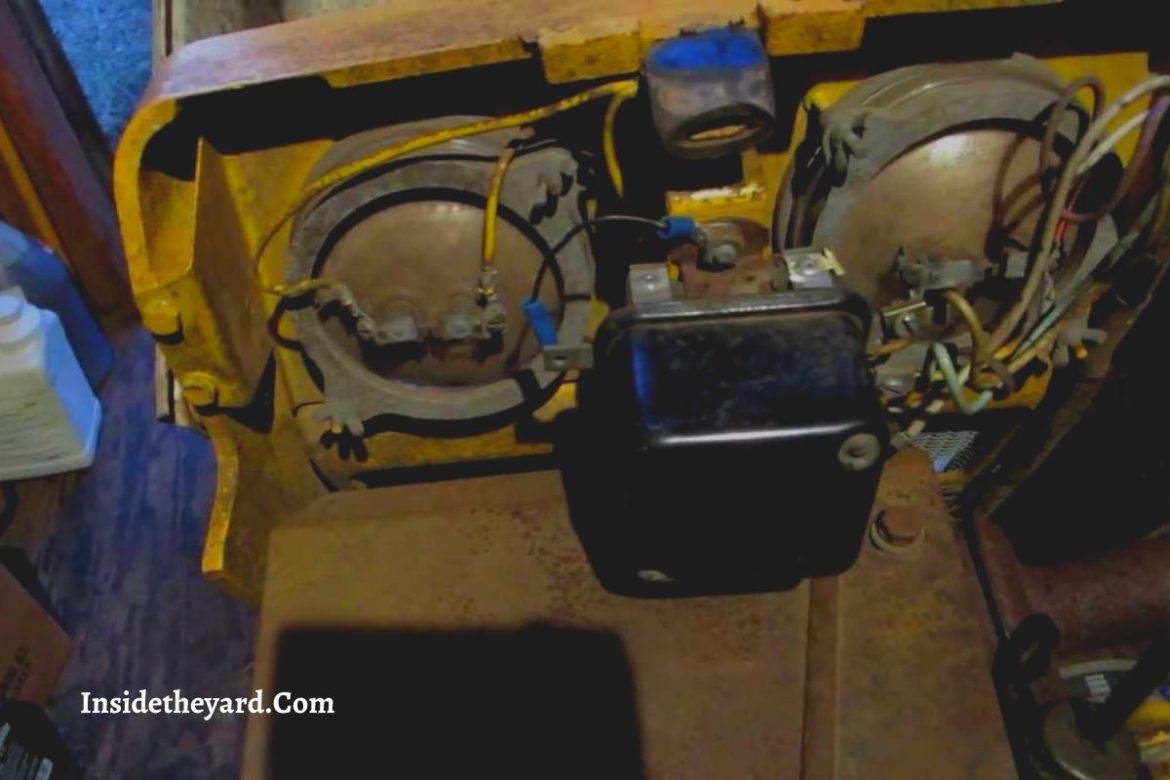

Where is the Cub Cadet voltage regulator location? The voltage regulator of Cub Cadet machine is located underneath the seat with the battery alternator. Still, here, we will know about the location for all models.

To know the details of the voltage regulator location, continue your scrolling and pay good attention.

Finding Cub Cadet Voltage Regulator Location

Generally, most of the locations of the Cub Cadet voltage regulator are the same. The Cub Cadet voltage regulator can be found under the seat attached to the battery alternator. All the Cub Cadet series also have the exact same location.

So, if you find one series location, it would be easy to find the other series location. Let’s take a brief on some series of Cub Cadet voltage regulators.

Besides, if it’s about Cub Cadet 122 voltage regulator location or Cub Cadet 1045 voltage regulator location, it’s the same. So, just go for it underneath the seat.

By the way, you can check out the detailed and helpful discussion on the Kawasaki voltage regulator wiring diagram that will help you understand the voltage regulator and its function.

What’s The Role Of The Voltage Regulator?

Most people know that the voltage regulator provides voltage when starting and charging the engine. It also plays an influential role in generating electrical current from a magnetic field.

When the voltage regulator is disturbed, the balance of voltage will be unstable. Let’s check some issues with the voltage regulator.

Lighting Issue

If you carefully observe the light condition, it would be clear how to start dim when the regulator shows low charging riding. According to the Cub Cadet IT1050 voltage regulator location, you can notice premature bulb failure when the lighting appears brighter than average.

Battery Effect

The battery can be damaged if the voltage regulator can’t keep the voltage balance. According to the Cub Cadet XT1 voltage regulator location, the alternator is responsible for connecting with the battery recharging system. It would be tough to recover the battery if it collapses.

How To Test Cub Cadet Voltage Regulator?

It’s important to check to troubleshoot the Cub Cadet voltage regulator. To test it quickly, here we mention some points that would be effective in reaching the final test. Let’s check the procedures.

  • Use a digital multimeter to check the charging system
  • Connecting the red meter leads to the positive and the black meter leads to the negative battery
  • Ensure 12.2 volts reading
  • After reaching 13.5 to 15 volts, turn off the accessories and lights.

Results – If you get low output voltage, there can be issues with other parts along with the alternator itself. On the other hand, if the reading shows higher than 12V, there is a faulty regulator.

A Helpful Tutorial You May Need!

Frequently Asked Questions (FAQs)

Where Is The Voltage Regulator Located On Cub Cadet Lawn Mower?

The Cub Cadet voltage regulator is located inside the alternator or mounted on it. When turning on the mower headlights, then start to pass DC voltage. If you note the riding of voltage, you can see it’s up to 12 voltmeters.

Do Cub Cadet Mowers Have Alternators?

Yes, the Cub Mowers have an alternator responsible for providing voltage to the lawn mower while running the engine. It’s also accountable for charging the battery. Though the different models’ locations vary, all mowers contain alternators.

Conclusion

Hopefully, you get a clear concept of the Cub Cadet voltage regulator location. Now it’s easy to find the voltage regulator. The Cub Cadet series bear the same value and are enriched with the alternative circuit. Generally, the voltage regulator is located inside the alternator. But the vintage vehicle is introduced with an external voltage regulator or mounted outside.

In the modern vehicle, there is no visible Cub Cadet voltage regulator. Instead, an automatic recharging battery system is used to protect pass-over voltage into the circuit.

If you are confused about the voltage regulator term, reread the content with full attention. You can even get help from an expert.
