There are plenty of issues that can come your way while using the Toro lawn mower. And one common issue associated with the ignition switch.

Having some sort of resource related to the common issues should be helpful in such a situation. And of course, a visual representation, such as the toro ignition switch wiring diagram that we are providing today, will make things even easier hopefully.

In general white- black, white, red, red, and black color wires go to the ignition switch. In the case of the toro ignition switch, you will need to work with white, blue, red, yellow, and black wires.

Let’s walk through the guide below and hopefully things will get clearer by the end.

Key Takeaways

  • The Toro ignition switch has important parts like the module, relay, starter solenoid, and ground terminal that help it to run properly.
  • If you are facing starting issues with the Toro lawn mower, then check the ignition switch first as it’s usually responsible behind.
  • To test the ignition switch, you can use a multimeter. And if there’s an issue, then replacement is necessary.
  • If the Toro mower won’t shut off, it’s probably because of the faulty ignition switch.
  • Replacing an ignition switch on a Toro lawn mower is easy as long as you follow the instructions and take the necessary safety measures.
  • You should also invest in premium quality wirings, jumpers, bolts, switches, and components to avoid any issues with the ignition switch wiring.

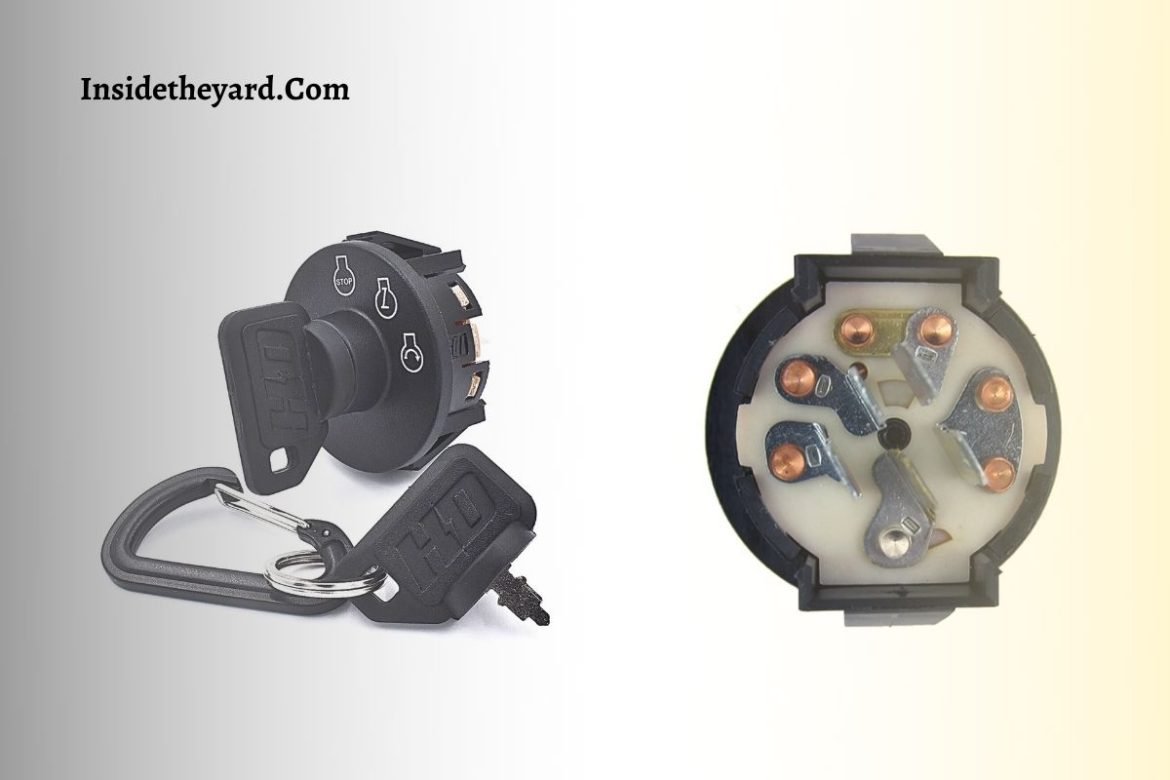

Presenting The Toro Ignition Switch Wiring Diagram!

If you are replacing wiring in Toro ignition switch but lost the manual or need the diagram to know which wire goes where, then look down below as we’ll share the illustration along with a proper explanation.

Toro Ignition Switch Wiring Diagram

Parts Of Diagram Details:

In the above diagram of the Toro ignition switch, you’ll notice 2 sections where the left side contains the ignition part with key and the right side shows the wiring connection. Both sides have numbers and letters indicating crucial parts which we’ll describe in detail.

SaleBestseller No. 3
Toro Recycler 21466 22-Inch 60 V Battery Self-Propelled Lawn Mower
Toro Recycler 21466 22-Inch 60 V Battery Self-Propelled Lawn Mower
POWER WITHOUT COMPROMISE – Cuts up to 1/3 of acre in 40 minutes or less on a full charge
SaleBestseller No. 4
YARDMAX 22 in. 201cc Select PACE 6 Speed CVT High Wheel RWD 3-in-1 Gas Walk Behind Self Propelled Lawn Mower, Black
YARDMAX 22 in. 201cc Select PACE 6 Speed CVT High Wheel RWD 3-in-1 Gas Walk Behind Self Propelled Lawn Mower, Black
Easily clean the underside of the cutting deck with the deck cleanout port; Single-lever deck adjustment for quickly setting your mow height
$356.40 Amazon Prime
Bestseller No. 5
Toro Walk Behind String Mower, 163cc Briggs and Stratton 4-Cycle Engine, 22-Inch Cutting Diameter, Large 14' Wheels, Heavy Duty Replaceable Cutting Lines, 58620
Toro Walk Behind String Mower, 163cc Briggs and Stratton 4-Cycle Engine, 22-Inch Cutting Diameter, Large 14″ Wheels, Heavy Duty Replaceable Cutting Lines, 58620
163cc 4-Cycle Briggs and Stratton engine; Extra Large 14″ Airless Wheels Tackle Uneven Terrain and Dense Foliage
$479.99 Amazon Prime

1 – Ignition key

It’s an essential part that let you start the engine of the Toro lawnmower. When you just insert it inside the switch of ignition, the mower starts to run like a horse.

2 – Starter Ignition Switch

This part engages the starter system for the engine to turn on immediately when twisting the key. Plus, it let most of the electrical devices in lawnmowers (like light accessories) by controlling the power source through the wire connecting.

No matter which model of Toro wiring diagrams of ignition you look in, you’ll definitely see 1 ignition switch that contains 3 positions for Off, On, and Run. FYI, all Torro lawnmowers contain a key style switch to ignite.

3 – Module

The spark plugs of lawnmower fire up thanks to this sole part. It tends to help the engine burn and get heated to run properly when signaling to start the mower.

This part uses input from the CPS (Crankshaft Position Sensor) or CMPS (Camshaft Position Sensor) to know if the spark plugs are burning or not

4 – Relay

Being a crucial part of Torro lawn mowers, this lets lower power trigger the starter circuit indirectly. Meaning that it actuates the starter circuit while not wired directly. This part makes it possible not to use heavy-duty wiring which might cause trouble in lawnmowers.

L – Lights Terminal

It helps the headlight to run immediately when you start the lawnmower thanks to the wired-up connections to the module and relay.

M – Magneto Terminal

As a self-contained generator, this terminal straight connect to the voltage regulator for magneto. It usually provides periodic pulses of the AC (Alternating Current).

B – Battery Terminal

It’s an electrical contact that fits on the ignition switch so that any load or signal shifts to the single-cell or multiple-cell battery.

S – Starter Solenoid Terminal

This part is also an electrical component that connects to produce load or current to a specific area. It is usually used for heavy-duty workings.

G – Ground Terminal

It’s a 0-volt reference point that requires the ignition switch to run fluently. It just alternates the road so that the current goes back to its source.

What Wires Go To The Ignition Switch On Toro Mower?

Now that you have enough ideas for each part, it’s time to reveal the wiring connections. If it’s your first time learning the ignition switch wiring, then look at the given table to acknowledge the topic well.

In Off Position

The M and G terminals activate when you turn off the Torro lawnmower. It happens due to the wiring connections.

The M terminal is linked to the Voltage Regulator Magneto unit using blue wire to signal. At the same time, the G terminal signals the starter solenoid through a black wiring connection so that the lawnmower shut down.

In Run Position

When the Torro lawnmower is in on ‘Run’ position, the L & B terminals work to signal different parts through separate wiring.

To explain it simply, the L terminal is connected to the relay and module using the white wire. It’s directly connected to the module while another line fits on the module through a clutch switch.

If you look at the diagram above, you’ll see the light blue wire coming from the white wire that goes to the relay to trigger the spark plugs. While another line goes to the module with a bail switch using orange and brown wires.

In the meanwhile, the B terminal signals the engine through the red wire with Fuse 7.5 amps. It then goes to the starter solenoid using the same wire with Fuse 30 amps. The starter solenoid signals the battery cathode (+) to run the lawnmower.

In On Position

Starting the Torro lawnmower is possible due to the 2 pins which are B & S terminals in the ignition switch. Just like in the ‘Run’ position, the B terminal signals the engine, starter solenoid, and later battery (+) using the same red wire.

During the same time, the S terminal signals the starter solenoid using the yellow wire directly with no fuse or circuit switch. And that’s how the mower starts.

Toro Lawn Mower Is Not Starting? – Check If The Ignition Switch Is Responsible

If you are facing an issue with the Toro lawn mower as it’s not starting for some reason, then begin by analyzing the ignition switch since that’s the part usually responsible behind. And if it is the culprit, then you also need some solution, which we’ll talk about gradually.

To test the ignition switch, you need to use a multimeter. And if there’s a problem, you need to replace the switch. The best way is to:

  • Start by testing the spark plug and confirming it’s fine.
  • Then use the multimeter for checking the ignition coil’s continuity.
  • If there’s a break in continuity, then the ignition coil needs replacement as well.

Try These Steps To Check Issue Of Ignition Switch

  • Bring the key to the start position by turning it.
  • Now use a multimeter and start measuring the resistance between B and S terminals.
  • The 1st probe should contact the B prong of the ignition switch.
  • The other probe should be in contact with the S prong.
  • Make sure both contacts are at the same time.
  • Start the engine and note down the resistance.
  • The resistance that you get at this point should be close to 0 ohms. And if it’s on an infinite level, then the ignition switch is faulty and needs replacement.

If you are curious about what’s happening here, then basically the ignition switch must close contact B to S. And there should be no voltage traveled to the solenoid. However, it’s clearly failing the job. Hence, the replacement is necessary.

Another strong indication that the ignition system is fine would be a beeping noise of the connector with a multimeter. Don’t forget to follow the lights to confirm the continuity as well as connectivity of the ignition switch.

Whenever there’s a negative result for these tests, you need to get the ignition switch checked. By yourself or by getting help from a professional.

Faulty Toro Ignition Switch Will Make The Mower Unable To Shutt Off!

Often Toro mower showing problem with shutting off means a direct connection with the ignition switch being faulty. There are two things in general that can cause the mower unable of shutting off, which are:

  • Disconnection of ground wire.
  • Damaged control cable.
  • The ignition switch is faulty.

If you know a bit about ignition switches and what they work for, then you’ll know the part manages to start, run, and turn off functions for the mower. And if the mower is failing to do the job, then the chance of a dead ignition switch is high.

The ignition switch being dead can lead to the following situations:

  • There will be no power supply to the fuel system as well as the ignition system.
  • An engine block can also be visible.
  • Eventually, the mower will stop restarting for a while.

There are many reasons why the ignition switch can get damaged in this particular case.

However, the most common ones are-

  • Corrosion issues in the system.
  • Spinning motor problem.
  • Connections and wiring are loose.

The solution for this issue is often a replacement for the ignition switch. Also, most of the time, replacement is the fastest and easiest route to fix the issues.

How To Replace Toro Ignition Switch?

If you have decided to replace that ignition switch of your Toro Lawn Mower, there’s hardly a need to spend money on professional replacement.

You can do it yourself with some guide. However, we still recommend getting expert help if you hardly know how these mechanical things work.

Here’s the easy process of replacing the ignition switch for a lawn mower:

Starting Tips – Get a pair of working gloves to work for this process safe

  • Turn the ignition switch off and you want to also take the keep out from it.
  • Now get to the battery of your mower and connect the negative cable. You want to eliminate the cable in such a way that there’s no contact between the battery and battery post.
  • Access the rear side of the ignition switch and untie all the visible locking tabs next.
  • Gradually start pushing the switch out through the dash’s front area.
  • There should be some wire harnesses on the rear area of the ignition switch. Make sure to disconnect it. Wiggle the plug a little bit if it feels difficult to unplug. And then pull it out.
  • Now you want to bring the new ignition switch and connect the wire harness to its back area.
  • Connect the ignition switch with a dash. Don’t forget to connect the locking tabs.
  • Bring the mower hood down and reconnect the battery by reversing the process that you used to disconnect it earlier.
  • Bring the seat down and that’s all!

Tips To Avoid Toro Ignition Switch Wiring Issues

The connections associated with the ignition switch should be always intact and proper. And so, you should consider investing in premium quality wirings, jumpers, bolts, switches, and basically all the components.

If you ever face any engine issue, make sure to get it checked and repaired as the first concern. It does not matter whether the problem seems minor or major. The whole ignition switch gets compromised with a little spring getting broken on the switch part.

And so, it’s always best to spend less when the problem is minor. Rather than having to pay more for being indifferent.

Make it a habit of checking the ignition switch on regular basis. You can invest in a digital multimeter such as the Klein Tools Digital Multimeter for that.

The DVOM machine such as AstroAI Multimeter 2000 Counts also helps. Any form of suspicious performance should be dealt with by checking and identifying the problematic parts as soon as possible.

You May Like This Video Too!

Frequently Asked Question (FAQs)

Are all Toro 7400 Series ignition keys the same?

Yes, the ignition switch and keys are similar for all the Toro 7400 series mowers.

What would cause a Toro Zero Turn not to start?

There are many causes that can lead to Toro Zero Turn being unable of starting. However, You can start by checking where the parking brake is engaged.u003cbru003eThe motion control levers also need to be in a neutral position. The PTO switch should be off position. All of that confirms the Toro mower is in proper setup for the engine to start without any problem.

How do you start a Toro lawn mower without primer?

You will require squiring the starter fluid directly into the carburetor for starting the mower without using primer. And you squirt via the air intake available.u003cbru003eGet the air filter cover out and then also the air filter next. Then you can start using the air intake nozzle for squirting the starting fluid.u003cbru003eOnce you are done change the air filter and try starting the mower. It should begin instantly without any issues.

Wrapping Up

And that was all about the toro ignition switch wiring diagram as well as the issues that commonly are seen for this particular part.

The more you know, the better you’ll be at fixing whenever there’s an ignition switch relevant problem. So, hope all this information will be fruitful in general as you keep using your Toro Lawn Mower.

There’s no alternative to professional help when things seem too serious to solve on your own. So don’t delay a checking or repair if that’s awfully needed.
