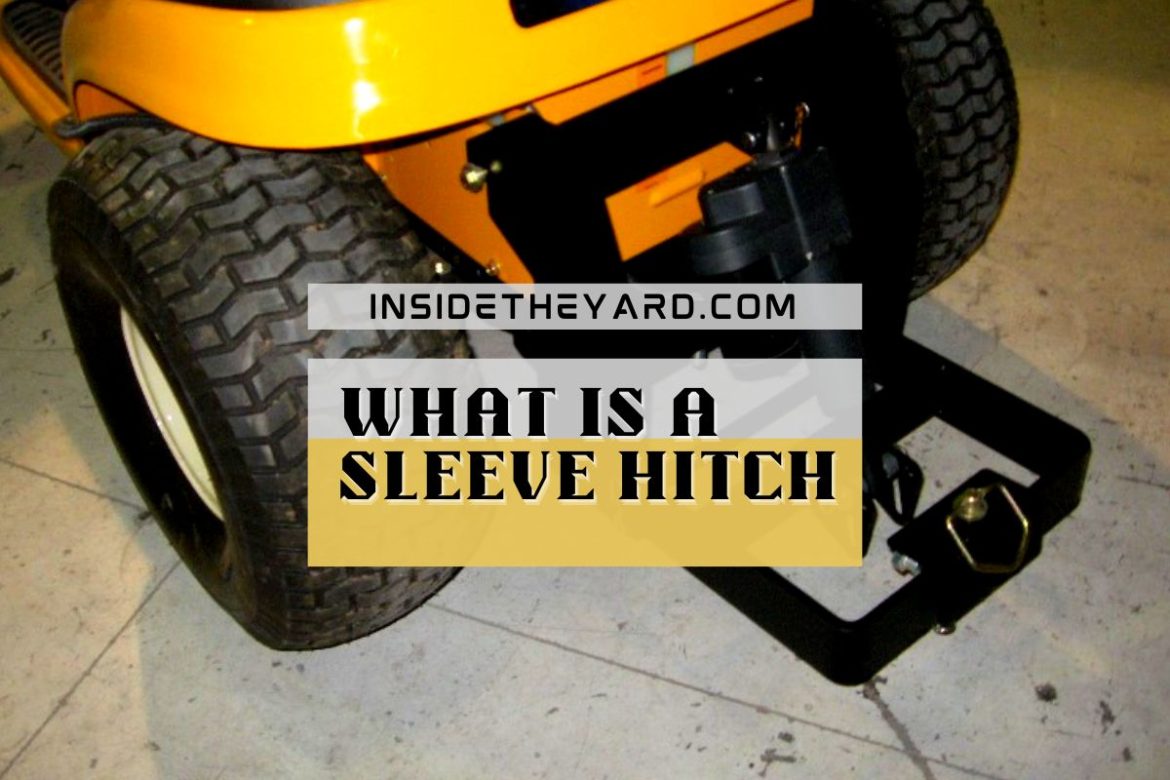

What Is A Sleeve Hitch? [In-depth Discussion]

Do you face problems tightening or hooking up your lawn tractor’s rear accessories in the right place? Then a sleeve hitch is a game changer here. The rear accessories of a garden tractor can be mounted at fixed locations using a sleeve hitch.

So what is a sleeve hitch, and why do you need one? Well, it is a machine that keeps the rear function tractor’s components in certain places. In more detail, it is used to mount the tractor’s rear components. In addition, this sleeve hitch ensures keeping these accessories operating at the perfect angle.

Don’t understand thoroughly? Then this guide is for you. Fortunately, in today’s discussion, I will discuss everything related to the sleeve hitch, such as what it is, how it functions, the importance of the sleeve hitch, how to install it, etc.

What Is A Sleeve Hitch: Things You Should Know

A perfect sleeve hitch allows the garden tractor to lift the rear components right and creates a massive downward force. Surprisingly, it helps you to lift the tractor’s backside as needed. The sleeve hitch from Husqvarna, Craftsman, and Johnny Products is impressive regarding quality, durability, and reliability. You can attach an electric actuator to increase down pressure or force.

Specifically, it can raise and lower the rear cutter or mower in the perfect proportion. In addition, it firmly holds any equipment on the back and helps maintain a proper connection to the ground. As a result, the machine can penetrate the land neither more nor less.

As a result, the land you need to cultivate will be cultivated precisely. Attachments that need to be connected to the ground are lowered more to function at right angles.

Tractor sleeve hitches are made of strong, rust-resistant steel that lasts a long time. There is also a powder coating that prevents liquids from pooling on top. Consequently, it does not rust easily.

What Is A Sleeve Hitch Used For: Using Purposes

Wonder what a sleeve hitch does in a garden tractor? There are several reasons why a sleeve hitch needs to be installed. As mentioned before, it can engage the rear equipment in the field for better cultivation. However, here are some common using purposes you should know.

➢  Keeping Stuff Attached Accurately

A sleeve hitch’s first and foremost function is to securely attach any object to the rear of the lawn tractor. It has 2 to 3 hook-like holes for inserting nuts or other formidable entities. As a result, the attachment does not move and stays in place. This way, the soil can become rough effortlessly in a short time.

➢  Cultivating And Plowing

Soil compaction is crucial when you decide to grow crops on your land. Needless to say that the soil does not produce good crops until it isn’t well cultivated. Mowers or spades are required to plow this soil properly.

But you need a lot of time and labor to dig the soil with a spade. In this case, this sleeve hitch can be attached to a mower or any mowing tool or heavy object on the back of a lawn or garden truck. As a result, the land is automatically threshed.

➢  Pulling The Heavy Mower Or Attachments

Now think how long you can pull a heavy object through the hummock to make the land suitable for cultivation. Surely a lot of time and effort, right? Imagine if you sat in the driver’s seat and steered the car from side to side. And all the tasks assigned to the mower to pull by the sleeve hitch.

Cool, isn’t it? That’s right, that’s why sleeves are essential for a gardener. In this way, the work is done more precisely, and it is done well. Hook the mowers up and left the pulling task to hitch.

➢  Lift The Truck’s Rear Part

While working, suddenly, dirt accumulates in the back of the truck, so the tractor is not moving. In this case, what should you do? Of course, the garbages must be cleaned and removed.

But for this, it is necessary to raise the back of the tractor to make the work easier. But is it possible to lift it alone? It is possible if you take the help of a sleeve hitch. All you need to do is first place a heavy object such as wood or iron at a certain distance.

Then press the switch to lower the front sleeve hitch. As the sleeve hitch applies force to the heavy object, the rear of the lawn tractor will slowly rise. How simple, right?

➢  Hold Attachments Perfectly

Another significant responsibility is to hold any attachment firmly in place. This way, you do not have to worry about rushing during work. As a result, the whole part of the land can be cultivated equally. This attachment is held very effortlessly by the nut-like holes in it. In addition, it allows the mower or other attachment to work at the perfect angle.

What Is A Sleeve Hitch For A Garden Tractor?

The sleeve hitch operates as a connector or attachment that holds heavy objects, especially mowers. It creates tremendous downward pressure or force to dig the soil right. There is an 18”-40” adjustable cultivator for aerating the soil.

Admit it or not, plowing, hoeing, or cultivating manually just using your physical activity is an exhausting, labor-intensive, and time-consuming process. But fortunately, a sleeve hitch works delicately to eliminate this hassle. It can hold the bulk load and other attachments. Then, pull them to hoeing the soil thoroughly.

Here are different types of sleeve hitches for lawnmowers and garden tractors:

Type 1: Universal Sleeve Hitch For Lawn and Garden Tractor

A universal sleeve hitch is an excellent option for tractors. It can easily carry 350 lbs with a power motion of over 7 inches. It is easy to install and takes less time. The manufacturer attaches the control switch to this type of hitch that can be mounted on your dash. It consists of a tractor tongue that connects the lower snag.

It can lock into any position and apply pressure or downforce as it has dual lift control settings. It features both a stabilizer plate and connected bolts to restrict attachment oscillation. They can ensure scope to use any sleeve hitch attachment, including box scraper, rake, mowers, single bottom plow, etc.

Type 2: John Deere Integral Sleeve Hitch

This hitch is used to lift the tractor at standard height (according to your preference). It’s easy to install since it only requires a pin and spring clip. Hooking up rear-mounted attachments such as blades, disk harrows, plows, and cultivators is made easier with the John Deere hitch.

Type 3: Three-Point Hitch

A 3-point sleeve hitch has double lower arms and one centered upper link. They create a triangle shape that firmly supports attachment. Traps are attached to implement with horizontal pins. At the bottom part of the implement, there is a pin attached.

How Does A Sleeve Hitch Work: Working Mechanism

Different types of hitch work differently. Almost every hitch cultivator works by applying a mechanical hand-operated lever from John Deere. You can find a safety lock system to support load efficiently and securely. As I said, it works like a connection.

It performs by being internally connected to another object. This includes the joint function that allows any attachment to be added to it. Usually, there are two or three hooks available for locking other things. As a result, it can easily drag the object. Additionally, you will find the lifting spring, which is adjustable.

How To Make A Hitch Sleeve Yourself: DIY Process

Making a sleeve hitch for your garden tractor is an effortless and money-saving conclusion. A sleeve hitch will cost you around $200 to $300, depending on the quality. But if you know the process of making it, you can save this money. So go through this.

Step 1: You need to gather the required materials for this DIY task. Following are the materials and hardware that you should collect.

  • 2” x ¼” Flat Bar (5)
  • ½” x 6” and ½” x 9” Black Nipple (need 2)
  • ½” x 9” Black Pipe (Need 1)
  • ⅜” x 1 ¼” and ⅜” x 2” Bolts (Need 2 and 3)
  • ⅜” Nylock Nuts (Need 6)
  • ⅜” flat Washers (12)
  • ½” Nylock Nut (1)
  • ½” Flat Washers (4)
  • Table Saw
  • Safety Gears, etc.

Step 2: Now, you need to cut a long piece of pipe for the handle into shorter segments. You can use a table saw to cut it into pieces. Don’t forget to mark the cutting places to make an accurate cut.

Step 3: Welding is the next step after cutting through the metal. Adjust the suitable joint and weld them right. Then, drilling out the metals to implement pins can be inserted perfectly. Ensure drilling according to the nylock nut and flat washers. Otherwise, these won’t fit firmly.

Step 4: After completing the welding and drilling process, give a finishing touch with paint. Also, check if it is faulty. If everything is fine, coat with paint to increase aesthetic.

You May Like This Video Too!

Frequently Asked Questions (FAQs)

What Is A Category 0 3 Point Hitch?

Category 0 3-point hitches are a significant and satisfactory addition for lawn and garden tractors. They are small and light-duty. So this category hitch can implement or attached, which is 20” wide. The dimension is also not remarkable from lower pins to upper link pins (only 12”).
According to Homesteading, the tractor power is up to 20 HP, and with a ⅝” (16m) top link pin diameter has Cat 0 3-point hitches. Another way to understand the Category 0 hitch is by looking at spacing. Usually, the lower hitch spacing of Category 0 is 510mm.

What Is A Tractor 3-Point Hitch?

There are different types of hitches available right now. Tractor 3-point hitch means dual lower arms with a single centered top link. Overall, this hitch is used for attaching or connecting the implements back on the lawn tractors.
This way, it can lift ups and down the attachments according to needs. This hitch is designed/originated by Harry Ferguson. The most used 3-point hitch is Cat 0, which is suitable for every garden or lawn tractor.

What’s The Difference Between Category 1 And Category 2 3-Point Hitch?

The main difference between Category 1 and Category 2 3-point hitches is suitability. Category 1 (cat 1) is suitable for lawn tractors whose HP range between 20 and 45. On the other hand, Category 2 is a perfect addition for tractors with 40 to 100 HP. Also, they differ from the top link, lift arm pin, and lower hitch spacing.
Cat 3 hitch attachment is more durable and heavy-duty compared to Cat 2. The primary implements or attachments for cat two hithes include back blades, rakes, box scrapers, etc. In contrast, the preliminary extensions for cart 3 include row crop cultivators, field cultivators, heavy-duty mowers or cutters, etc.

Conclusion

A sleeve hitch for a lawn or garden tractor is a suitable machine that hooked up different types of attachments. There are different types and categories of sleeve hitch available. The most used or applicable sleeve hitch for lawn or garden tractors is Category 0 or Cat 0. This is small stuff but does what you need. Installing the hitch depends on your choice.

However, this article explored more and has details information on what is a sleeve hitch. You can reduce the hassle of digging soil or plowing land by using this machine. So why late? Install the desired sleeve hitch behind your garden tractors and make gardening fun.
