The health and proper functioning of an engine largely depend on the carburetor. It is a mechanical device that plays a pivotal role in an internal combustion engine.
In simple terms, a carburetor blends the right amount of air and fuel to produce a combustible mixture for the engine. This process powers your lawn mower and other outdoor power machines.
Carburetor’s components include a throttle valve, idle and main mixture screws, an air-fuel mixture chamber, and a float system. The throttle valve controls the engine’s power by regulating the airflow, while the idle and main mixture screws fine-tune the air-fuel ratio.
This article takes a closer look at Briggs and Stratton carburetor troubleshooting.
Often, adjusting the carburetor can resolve the issue. However, some minor problems may simply require routine cleaning.
Let’s explore the possible issues and their solutions for the Briggs & Stratton engine carburetor. This way, you’ll be equipped to handle any challenges that may arise, ensuring a smooth and efficient operation.
Briggs and Stratton Carburetor Troubleshooting
Briggs and Stratton’s engines are made with three types of carburetors. They can come with:
- a primer system,
- a choke system,
- or an auto-choke system.
When encountering issues with your carburetor, it’s crucial to identify the specific model. You can typically find the model number stamped on the engine or printed on a label attached to the engine or valve cover.
We’ve compiled a table outlining various Briggs and Stratton Carburetor issues you might encounter. This comprehensive carburetor troubleshooting guide is designed to make addressing these issues much more manageable for you.
| Symptoms | Solutions |
| The carburetor goes out of adjustment, and the engine fails to start. | Improper valve clearance and leaks may cause this kind of issue. |
| The idle speed goes excessive. There is no power when the engine speeds up. The engine will not start. The engine runs too fast (overspeed). | First, clean the carburetor. Then, try adjusting it. |
Briggs and Stratton Carburetor Cleaning
As mentioned above, a carburetor mixes the fuel and air and transports it to the engine. There, the mixture is ignited by a spark plug, ensuring stable power output.
In most cases, you can overcome the carburetor issues by cleaning carburetor clogs.
For cleaning a Briggs and Stratton carburetor, you will need the following things:
- cleaning spray,
- socket set,
- screwdrivers,
- eye protection.
Having gathered all the necessary items, you may now proceed with the repairs.
- First, check the airflow. Remove the air filter and examine it for any accumulated dirt. After a thorough investigation, clear away any debris that may be obstructing the airway.
- Next, apply a cleaner to various parts of the carburetor to maintain its efficiency.
- Finally, disconnect the fuel line from the tank and search for potential blockages. To do this, blow into the line; if the fuel moves freely, there are no obstructions. However, if a blockage is discovered, it’s essential to flush the fuel line thoroughly.
Briggs and Stratton Carburetor Adjustment
Dirt-like particles can clog the carburetor, leading to various issues that affect the smooth functioning of your equipment. It is yet another reason why efficient and regular maintenance is crucial to keep everything in top condition.
Fortunately, this problem is relatively easy to fix. Just follow these simple steps:
- Find the main fuel jet located in the carburetor’s fuel bowl nut. Clean it using a carburetor cleaner, which will help loosen debris and blow it out. The cleaner also removes deposits, reducing the need for frequent maintenance and repairs.
- After cleaning the carburetor, the next step is to adjust the idle speed. However, bear in mind that this adjustment only applies to older, non-EPA-regulated carburetors. For these models, turn the high-speed valve 1-1/2 turns open from the seat and then turn the idle valve 1-1/4 turns open from the seat.
It’s important to note that modern carburetors adhere to EPA emission standards and are non-adjustable. They cannot be tampered with since they’re built in factories, and any alteration would be considered illegal, potentially leading to civil penalties.
Acceptable maintenance practices involve replacing spark plugs and air filters, routine servicing such as changing jets for high-altitude operations and rebuilding carburetors.

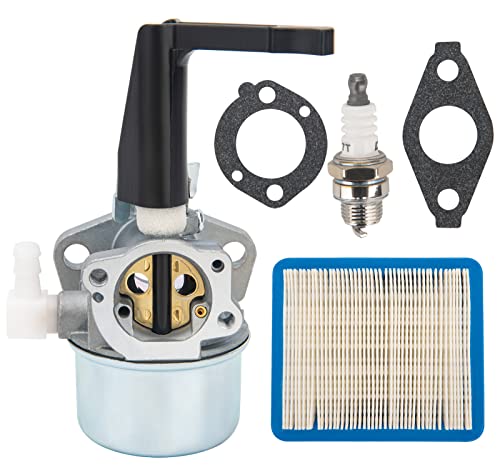

Several Briggs and Stratton engine tune-up kits are available on the market for added convenience. These kits include air filters, oil, spark plugs, and an instruction manual for guidance.
You May Like This Video Too!
Final Thoughts
Carburetor issues can wreak havoc on your equipment in a multitude of ways, and many problems stem from this vital component. Therefore, it is crucial to maintain your equipment regularly and ensure its proper functioning.
Effective management can address all types of concerns and keep you informed about the condition of your machinery. In this article, we have provided a Briggs and Stratton carburetor troubleshooting guide, which we believe you will find helpful.
Remember, the carburetor serves as the engine’s heart. It plays a critical role by meticulously blending air and fuel for combustion, ensuring seamless and efficient performance. So, it’s wise to take the necessary precautions to keep it in the best shape possible.
You Can Also Read:
- The Briggs and Stratton Carb Adjustment Diagram & Instructions
- The Briggs and Stratton Throttle Linkage Diagram
- Briggs And Stratton Governor Spring Diagram to Locate the Part
- Looking For Briggs and Stratton Governor Linkage Diagrams?
Frequently Asked Questions (FAQs)
Where is the carburetor on a lawn mower?
The carburetor plays a vital role in a lawn mower’s engine, ensuring proper fuel and air mixture for optimal performance. Generally found on the side or top of the engine, it remains directly connected to the gas tank and positioned behind the air filter.
How can you determine if your lawn mower’s carburetor needs cleaning?
Several telltale signs indicate it might be time to clean your mower’s carburetor. Keep an eye out for these common symptoms:
- difficulty in starting the engine,
- unexpected stalling while mowing,
- rough engine performance during operation,
- or noticeable black smoke emitted from the exhaust.
Experiencing any of these issues? It’s likely that grime and dirt accumulation within the carburetor disrupt its functionality.
How can you clean a carburetor on a lawn mower without removing it?
You don’t always need to remove the carburetor to clean it. Follow these simple steps to clean your lawn mower’s carburetor without dismantling it:
- Turn off the mower: Safety first. Ensure your lawn mower is shut off and cooled down before beginning any maintenance.
- Inspect the air filters: Detach and visually inspect the air filters for clogs or damage. Clean or replace them as needed.
- Check connections: Examine all connections to and from the carburetor — look for loose or damaged parts that may require tightening or replacement.
- Use a carburetor cleaner spray: With everything securely in place, liberally apply a carburetor cleaner spray onto the exterior and interior surfaces of the visible part of your carburetor. It helps dissolve and loosen up any stubborn debris lodged within.
- Wipe away residue: After allowing the cleaner to sit for a few minutes, gently wipe away residue with a clean cloth or brush. Be thorough in removing the dissolved debris.
- Reassemble and test: Once satisfied with your cleaning efforts, reattach any removed components and start the engine. Check for improved performance and resolve lingering issues if necessary.
By following these steps, you can effectively clean your lawn mower’s carburetor without having to remove it, ensuring optimal performance and prolonging the life of your mower.
